Installation Attention for Linkable LED Trunk Lights



Prior to Installation

Please read and understand all cautions, warnings, instructions, and product labels before installing linear light, otherwise, it could result in injury and void the warranty.

Warning

  • Luminaires are suitable for direct mounting on normally flammable surfaces.
  • Disconnect power before installing or servicing. This lighting fixture must be installed, connected and tested by a qualified electrician.
  • Please check local voltage in accordance with the product requirements before using the product.
  • The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
  • The power cord please choose H07RN-F 3x1.5mm2.
  • The terminal box shall be approved according to EN 60998-2-1 or EN 60998-2-2; and shall comply with below specification: the type of terminal (screw/screwless); number of terminals; (2 terminals for L/N connecting); rated voltage (>450 V); rated connecting capacity; (0.75-2.5mm2) the wire end must clamped by crimp terminal wire connector to prevent the free wire of conductor escaping; the terminal block must be protected against of electric shock; fixing the terminal block by glue; Connect up the red wire to ‘L’ terminal, and blue wire connected to ‘N’ terminal.

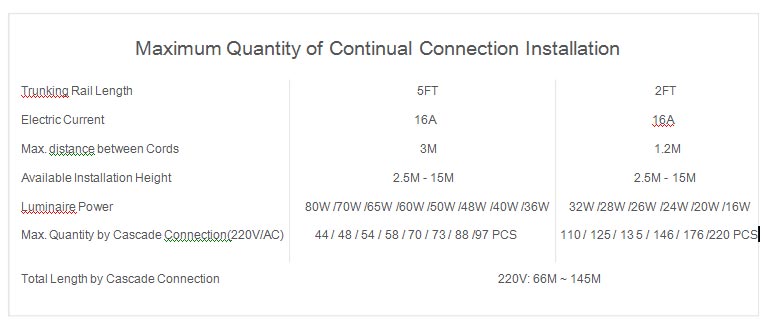

  • The max distance between two suspension kits or surface mounted kits is adjustable, 3m maximum.
  • The installation height is 15m maximum with 100lux.
  • The electric current of each single wire and connector is 16A.

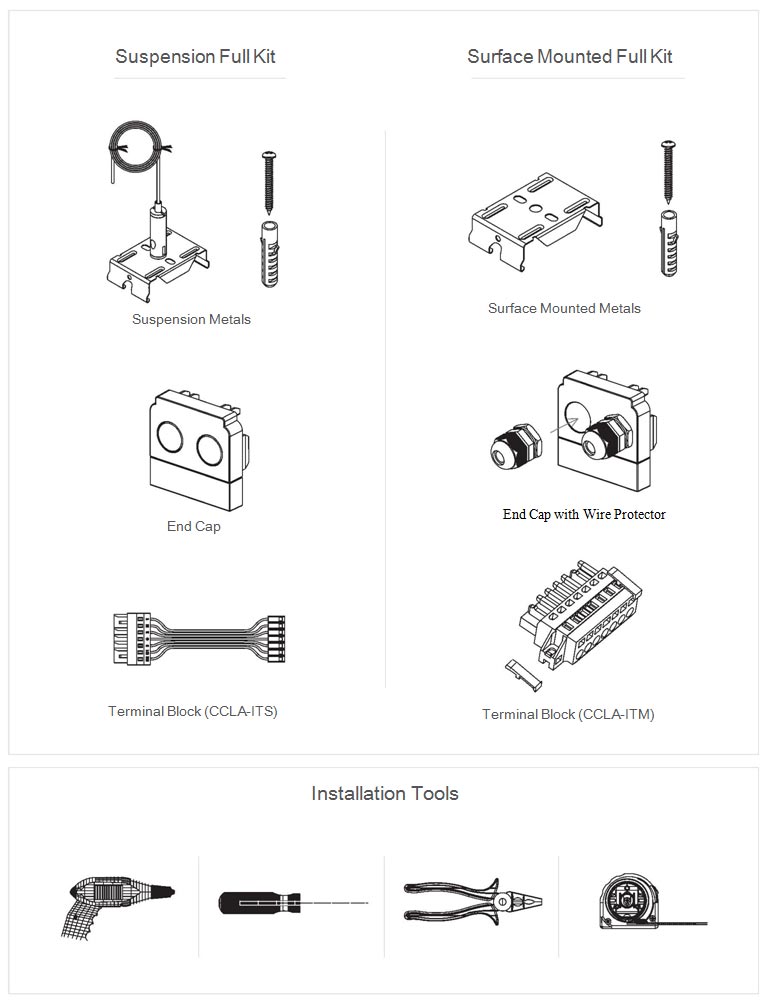

Installation Ready
