Item: YB-T3 Series - 15W-30W 3 Wires Track Linear Light

Item: YB-T3 Series
Product Name: 15W-30W 3 Wires Track Linear Light

A continuous-row LED lighting system could be created only by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other.

  • Power: 15W-30W (Unit)
  • Rated Voltage: 100-277V
  • Color Temperaturre: 3000k/4000k/5000k/6000k
  • Rendering Index: Ra>80
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric

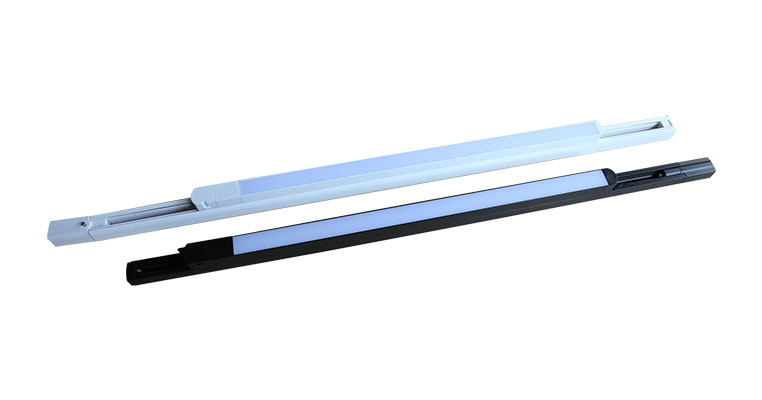

picture (image) of yb-t3-series.jpg

Features of LEDs

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where require high accuracy of color, such as in museum, jewelry store, pring factory and so on. CRI 95 linear series is highly recommended.







Technical Data

Item Wattage
(W)
Luminous
Flux(lm)
LED
(qty/type)
Size
(LxH mm)
Carton Meas.
(50 pcs)
Options
YB T3060 15 2000 75 600x20 610x20x20 cm White
Gray
Black
YB T3100 28 3600 140 100x20 105x20x20 cm
YB T3120 30 3900 150 120x20 125x20x20 cm





LED Linear Lighting System

The LED linear lighting system is an energy-efficient , low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations. Due to it's low installation cost, everything in one box and installtion is tool-less. It saves both time and costs when installing lighting systems. Also the LED linear lighting system is really good in terms of the low mantenance. That's typical for LED lighting and this also keep costs low.

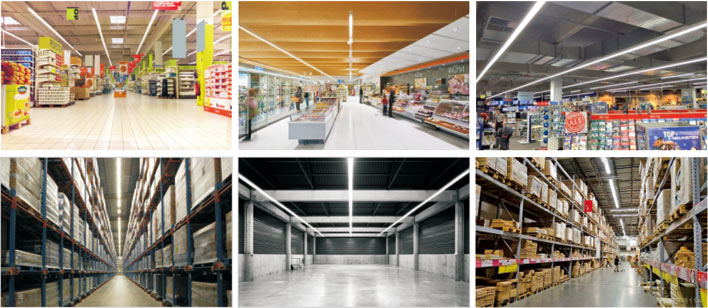

Application

  • Warehouse
  • Supermarket
  • Underground parking garages
  • Wet indoor area
  • Production workshop

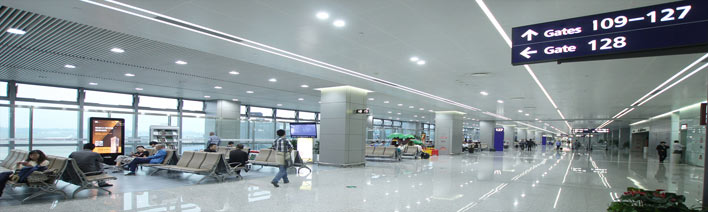

  • Railway station
  • Museum
  • Laboratories
  • And so on

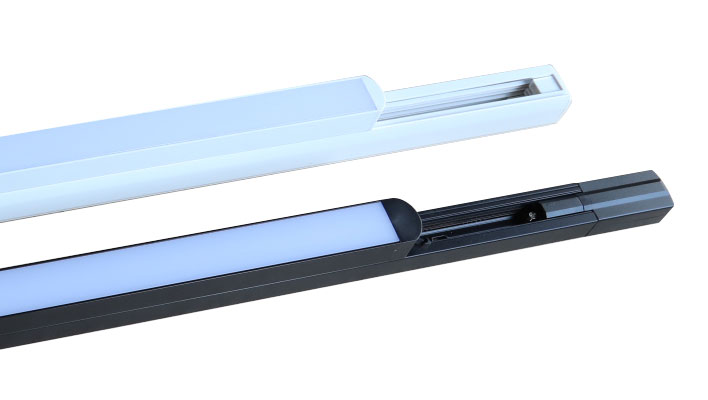

Trunking Rail

The flexible trunking system for lighting demands in all application, with full compatible modular kit, it adapts individually to complex lightingtasks. It has an 11-pole current conducting section built into its trunking. This means that the system comes ready equipped to meet tomorrow's needs. ll functions such as power suply, lighting control and connection to emergency lighting are seamlessly integrated into this multifunctional trunking. Luminaires can be positioned flexibly and the system can be adapted to suit structural alterations at any time.

The trunking rail is simply a matter of replacing or adding lighting modulars, light sources or optics as required.

  • 3 wires.
  • Endless combination with diversified modulars.
  • Tool-free installation
  • Node connectors enable system to be connected in different directions.

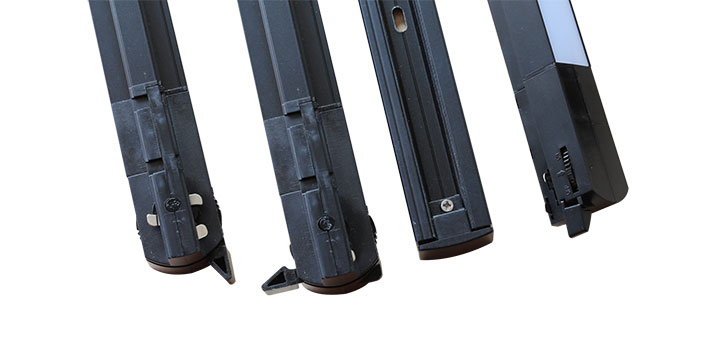

Node Connector

All system components can be combined without tools. L, T and X connectors expand the system's application range.





  • Each node connector has diverse of electrical feed-in and feed-out.
  • The node connector is not only to connection the cross trunking, but also to connect the wire inside the trunking. And the node connector itself could even be the electricity feed-in point.

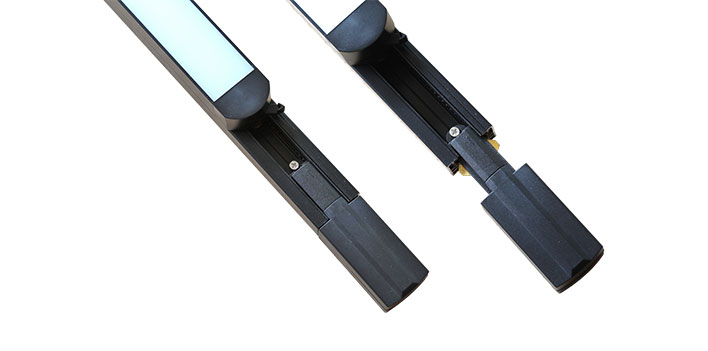

Installation

LED light source and light fixture can be connected simply without tools.
